UTL-1E

from $9.99

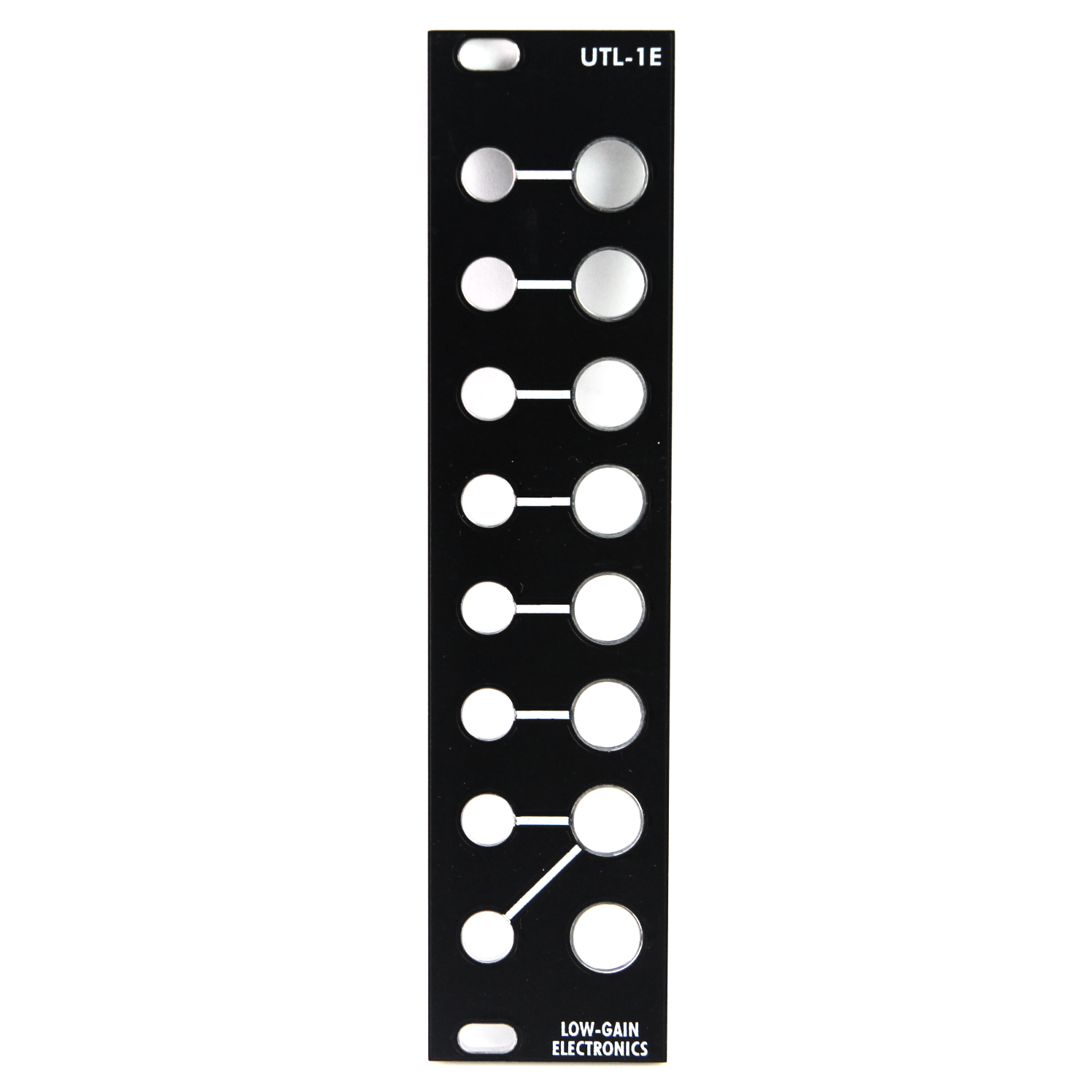

The UTL-1E is a 6hp Passive* Eurorack format jumbler. Production modules are now shipped withmatte black panels.

DETAILS

  • Size: 6hp

  • Depth: tbd

  • Current Draw: 0mA (Passive)

Module / DIY:
Quantity:
Add To Cart

The UTL-1E is a 6hp Passive* Eurorack format jumbler. Production modules are now shipped withmatte black panels.

DETAILS

  • Size: 6hp

  • Depth: tbd

  • Current Draw: 0mA (Passive)

The UTL-1E is a 6hp Passive* Eurorack format jumbler. Production modules are now shipped withmatte black panels.

DETAILS

  • Size: 6hp

  • Depth: tbd

  • Current Draw: 0mA (Passive)

DESCRIPTION

The UTL-1E is a 6hp Passive* Eurorack format jumbler. It allows for up to 6 channels of simple adaptation from 3.5mm jacks to banana jacks. The UTL-1E also includes a 2 channel Logic Gate OR combiner and direct access to
to the incoming 3.5mm Jack Ground connections via the black banana jack in the lower right corner. This allows for simple interconnection between other formats of Modular that use Banana Jacks.

*this unit is passive and does not perform
any voltage/level scaling/offsets

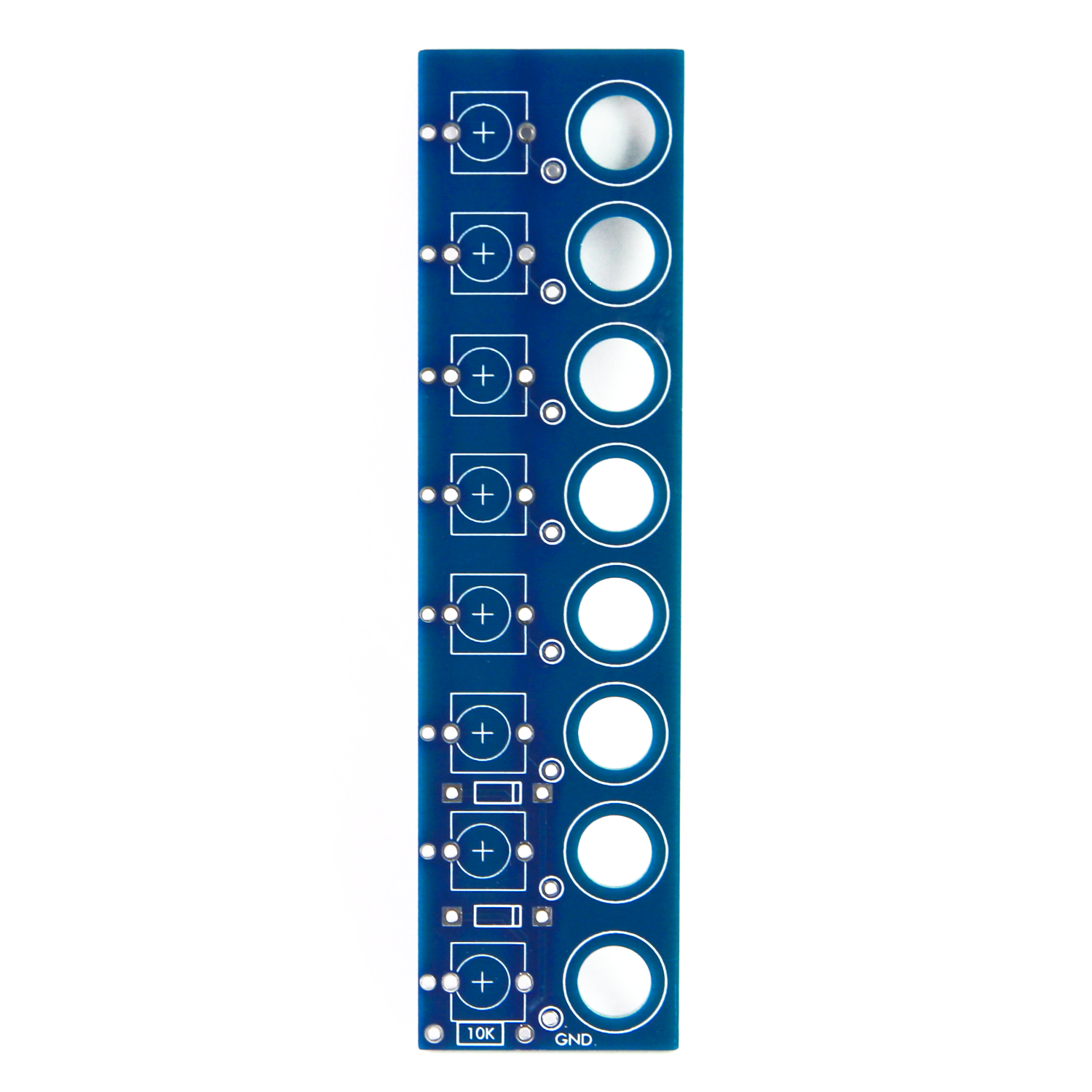

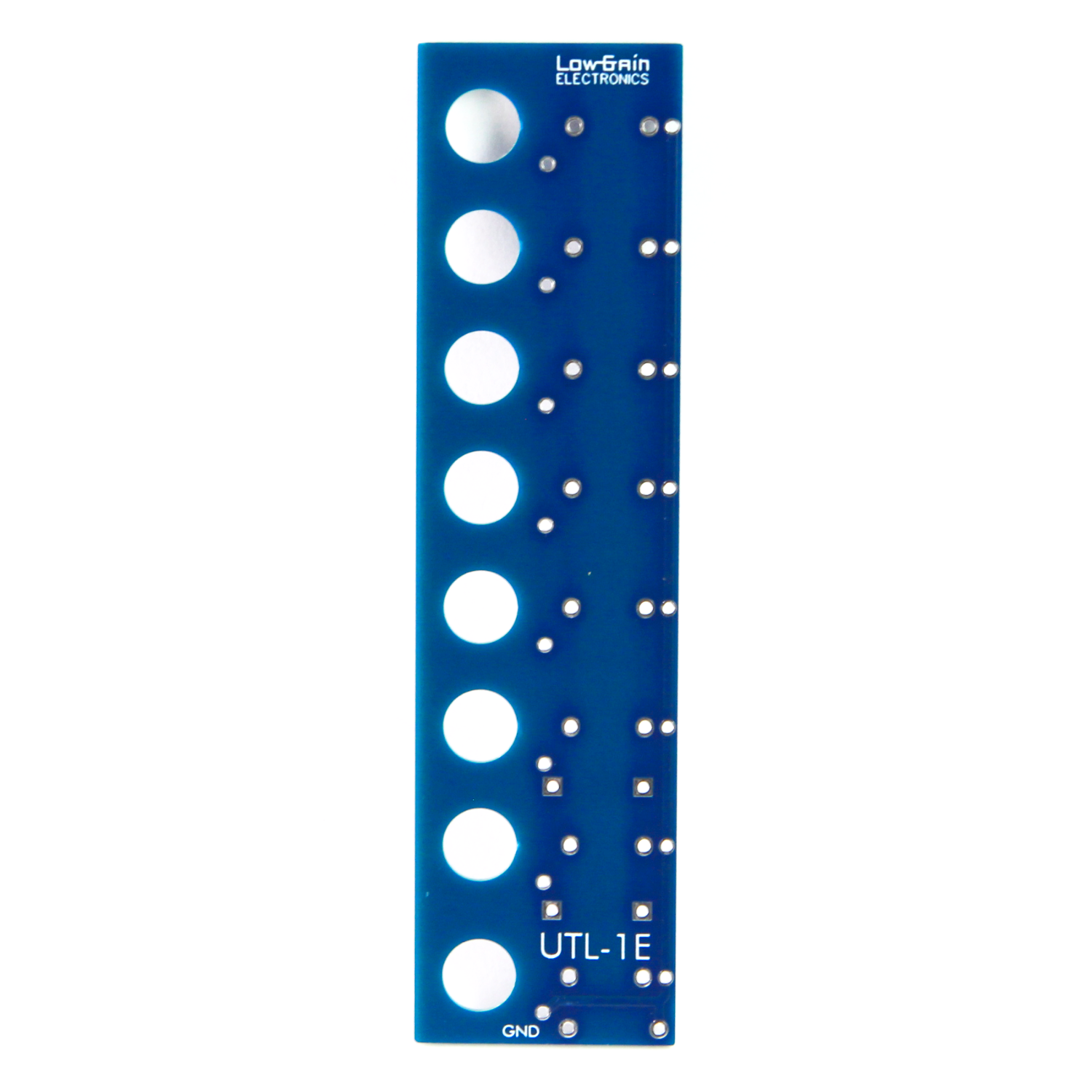

DIY Bill of Materials:
(8) PJ301M-12 style jacks (“Thonkiconn”)
(7) Banana Jacks (color based no your preference)
(1) Black Banana Jack (Ground)
(2) 1N5817 Schottky Diodes
(1) 10K 1% Metal Film Resistor
