Dual Touch Plates
DESCRIPTIONDual Touch Plates is a simple two channel capacitive touch plate controller utility. Providing two pressure CV outputs (0-5V) and two gate outputs (0-5V). Nothing fancy, just a useful utility in a 1” column module.
DETAILS1U
Current: TBD
PCB Size: 6” x 1”
DESCRIPTIONDual Touch Plates is a simple two channel capacitive touch plate controller utility. Providing two pressure CV outputs (0-5V) and two gate outputs (0-5V). Nothing fancy, just a useful utility in a 1” column module.
DETAILS1U
Current: TBD
PCB Size: 6” x 1”
DESCRIPTIONDual Touch Plates is a simple two channel capacitive touch plate controller utility. Providing two pressure CV outputs (0-5V) and two gate outputs (0-5V). Nothing fancy, just a useful utility in a 1” column module.
DETAILS1U
Current: TBD
PCB Size: 6” x 1”
DIY Information:
LGE186 Main PCB Bill of Materials
LGE186 Main PCB Schematic

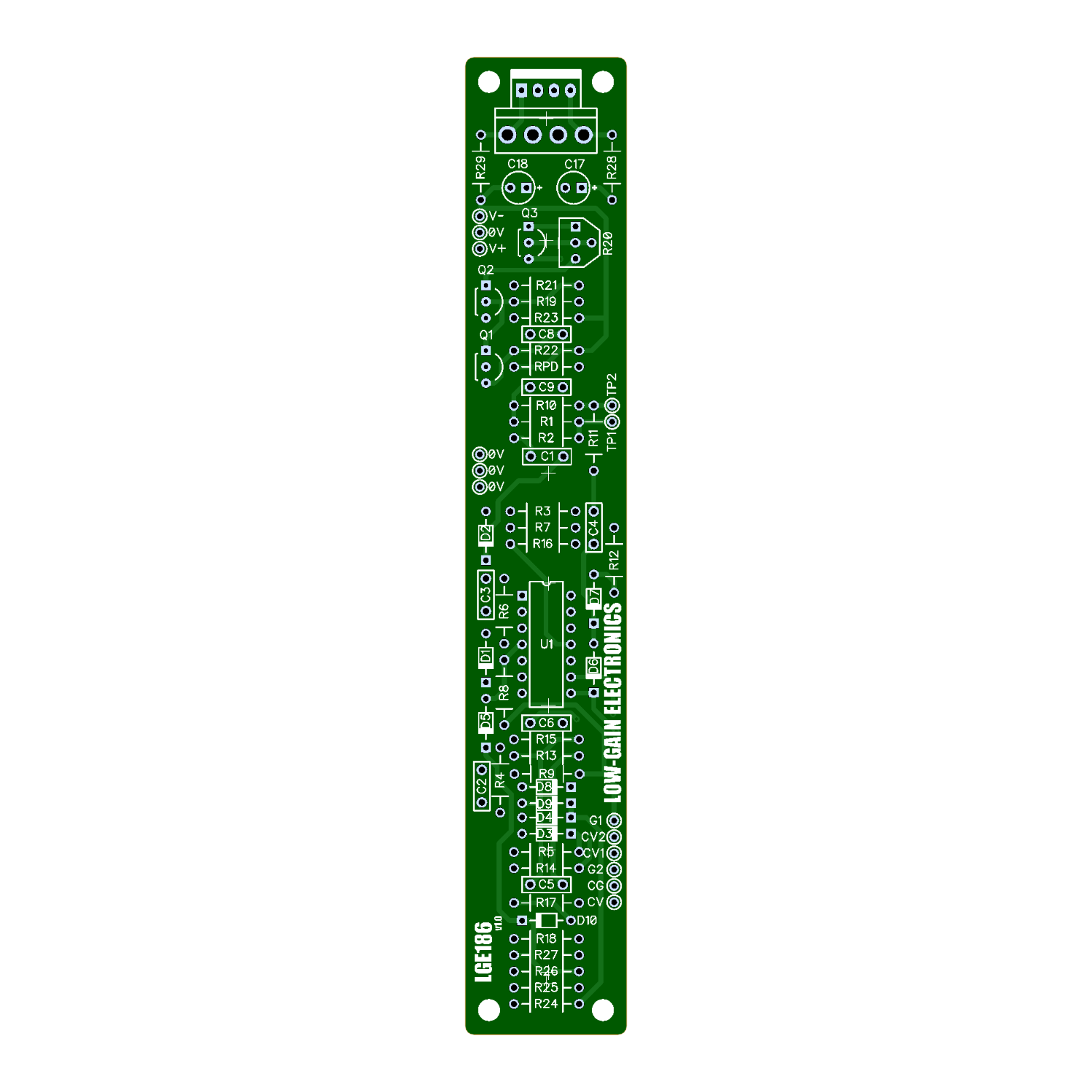

LGE186 Main PCB Designators
Mechanical Parts BOM generally required for building Low-Gain Electronics Modules
It is recommend that shrink tube be used on the banana tabs after being bent 90 degrees, or use electrical tape on the bottom of the pcb to insure there is insulation between the tabs and the PCB.
** 4U Modular is a term used for the format most commonly known as “Serge Format” or “Loudest Warning Format”. Out of respect for the ever growing format, 4U Modular is the easiest way to refer to it. More Specifically it refers to the panel height and mounting hole style. 4U Modular will patch up just fine with other 4U "Serge" formats such as "Random Source", but it will not mount in RS boats or Buchla Boats (or power off Buchla power for that matter). An info page about this will be added to the website soon to make this a lot more easy to understand.
Details:
PCB Size: 6” x 1”
Current Draw: TBD
