Discrete Slopes

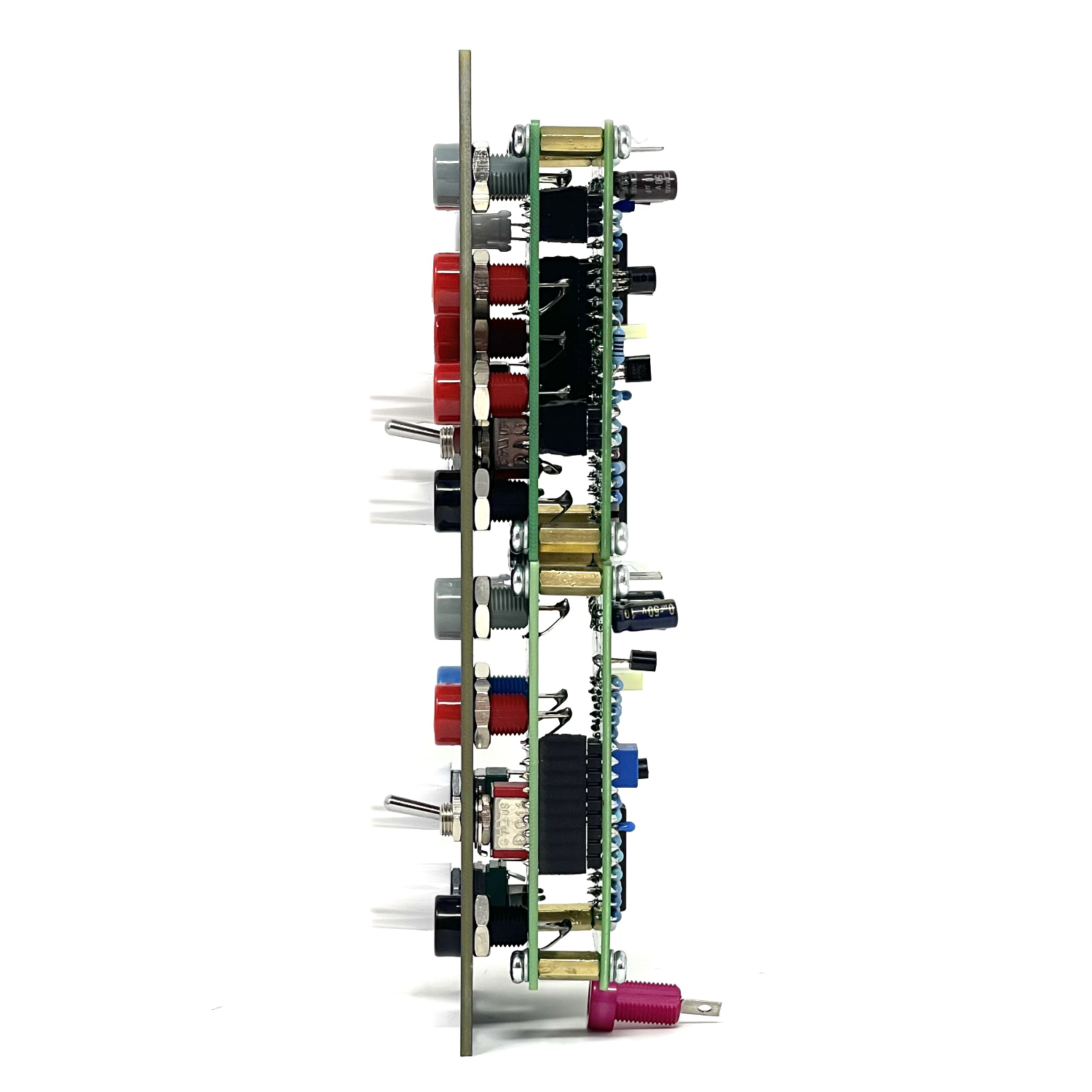

The Discrete Slopes consists of one Postiive Slope and one Negative Slope circuits behind one panel. These circuits should never be over looked as they are very useful function blocks. This is the first set of a new product line that I’m calling the “Block” format. Which consists of breaking
modules down into two column by four row function blocks” allowing you to mix and match in either 4U modular or any other format you prefer. Each section’s PCB’s are roughly 2” x 3”

When ordering for DIY you will need LGE082S-PCB Set, LGE083S-PCB Set and LGE0823-PAN

For more information on the original modules please see:
LGE082 Dual Negative Slopes
LGE083 Dual Positive Slopes

Assembled Modules are built to order, please be patient when ordering. Use the contact page if you have any questions or requirements.

Discrete Slopes DIY Info:

LGE082S - Negative Slope Block
LGE082S Main PCB Bill of Materials
LGE082S Main PCB Schematic
LGE082S Main PCB Layout w/ Designators
LGE082SC I/O Board Bill of Materials
LGE082SC I/O Board Schematic (Wiring Diagram)
LGE082SC I/O Board Layout w/ Designators

LGE083S - Positive Slope Block
LGE083S Main PCB Bill of Materials
LGE083S Main PCB Schematic
LGE083S Main PCB Layout w/ Designators
LGE083SC I/O Board Bill of Materials
LGE083SC I/O Board Schematic (Wiring Diagram)
LGE083SC I/O Board Layout w/ Designators

LGE0823 Panel Artwork
Mechanical Parts BOM generally required for building Low-Gain Electronics Modules

** 4U Modular is a term used for the format most commonly known as “Serge Format” or “Loudest Warning Format”. Out of respect for the ever growing format, 4U Modular is the easiest way to refer to it. More Specifically it refers to the panel height and mounting hole style. 4U Modular will patch up just fine with other 4U "Serge" formats such as "Random Source", but it will not mount in RS boats or Buchla Boats (or power off Buchla power for that matter). An info page about this will be added to the website soon to make this a lot more easy to understand.

Details:

• PCB Size: 3” x 2” X 2 sets

• Current Draw: TBD
