Dual Negative Slopes + Hills & Valleys

from $17.50
sale
DESCRIPTION

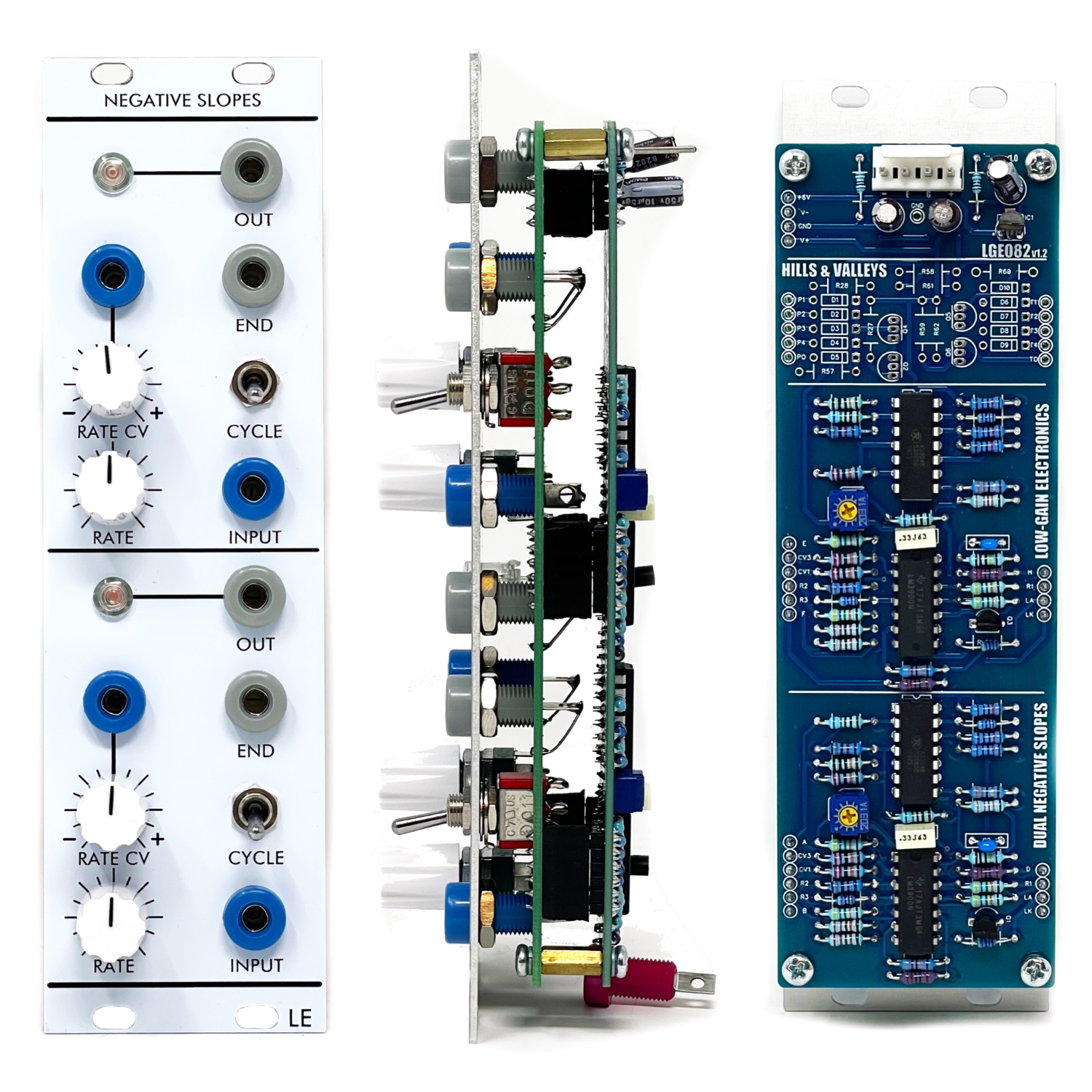

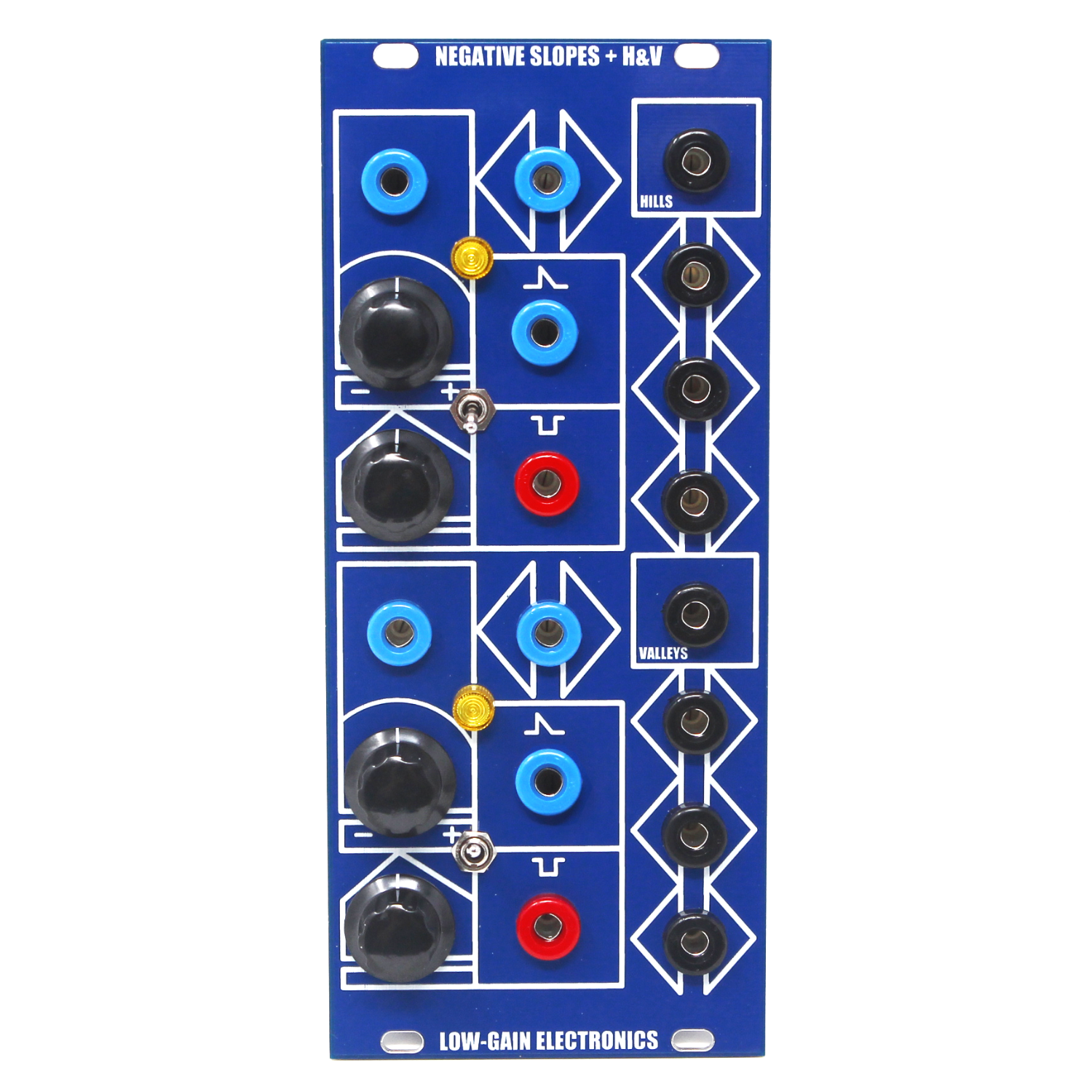

The classic Dual Negative Slopes + Hills & Valleys is a dual voltage controlled decay generator with added min/max processors (Hills & Valleys) in the 4U Modular format.

DETAILS

  • Current: TBD

  • PCB Size: 6” x 2”

Select Product:
Quantity:
Add To Cart
DESCRIPTION

The classic Dual Negative Slopes + Hills & Valleys is a dual voltage controlled decay generator with added min/max processors (Hills & Valleys) in the 4U Modular format.

DETAILS

  • Current: TBD

  • PCB Size: 6” x 2”

DESCRIPTION

The classic Dual Negative Slopes + Hills & Valleys is a dual voltage controlled decay generator with added min/max processors (Hills & Valleys) in the 4U Modular format.

DETAILS

  • Current: TBD

  • PCB Size: 6” x 2”

Assembled Modules are built to order, please be patient when ordering. Use the contact page if you have any questions or requirements!

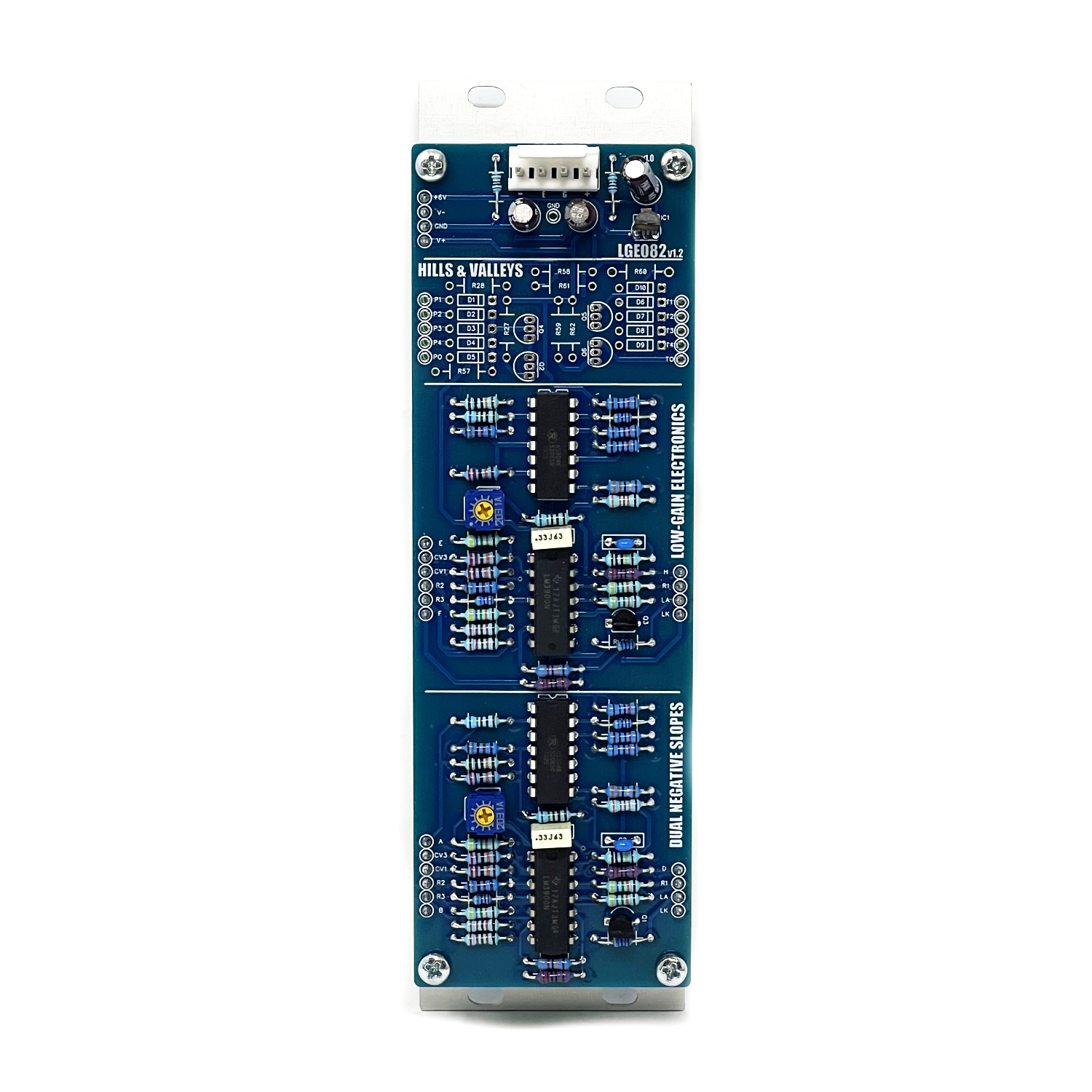

An error was found on the current pcb in the Hill/Valley’s section of the circuit. R57 connects to the nodes between pin 2 of Q4 and Ground. The Ground side of R57 should actually connect to V-. See Photo

** 4U Modular is a term used for the format most commonly known as “Serge Format” or “Loudest Warning Format”. Out of respect for the ever growing format, 4U Modular is the easiest way to refer to it. More Specifically it refers to the panel height and mounting hole style. 4U Modular will patch up just fine with other 4U "Serge" formats such as "Random Source", but it will not mount in RS boats or Buchla Boats (or power off Buchla power for that matter). An info page about this will be added to the website soon to make this a lot more easy to understand.


DIY Info:
LGE082 Main PCB Bill of Materials
LGE082 Main PCB Schematic
LGE082 Main PCB Layout w/ Designators
LGE082C I/O Board Bill of Materials
LGE082C I/O Board Schematic (Wiring Diagram)
LGE082C I/O Board Layout w/ Designators
Mechanical Parts BOM generally required for building Low-Gain Electronics Modules

Details:

  • PCB Size: 6” x 2”

  • Current Draw: TBD
