4U Modular XLR4 Power Distribution Board

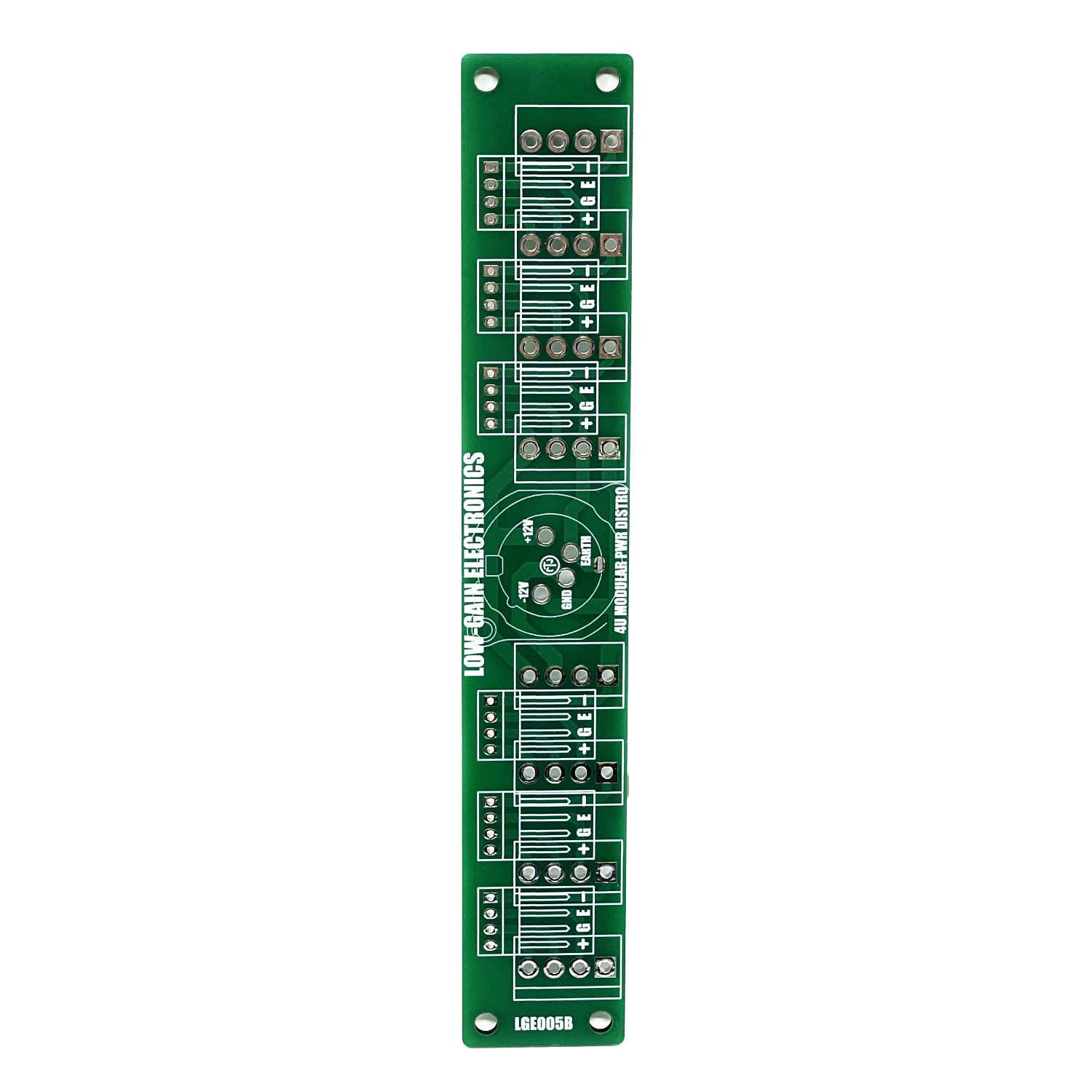

This is an XLR4 VERSION OF THE 4U format power distribution PCB but is compatible with RS, Serge, MOTM, CGS, MFOS, Frac, BugBrand, Slightly Nasty, or other format of modular that uses 0.156” MTA156 Molex OR 0.100 MTA100 Molex style headers. It supports the 6”x1” Serge PCB standards (same mounting holes, but slightly larger. It will fit into your panel projects and allow for simple power distribution, but with the addition of the Neutrik NC4MAV 4 pin panel mount male XLR (XLR4) jack. This is compatible with RS format 4×4 Boats that support the XLR4 on the side.
This is an XLR4 VERSION OF THE 4U format power distribution PCB but is compatible with RS, Serge, MOTM, CGS, MFOS, Frac, BugBrand, Slightly Nasty, or other format of modular that uses 0.156” MTA156 Molex OR 0.100 MTA100 Molex style headers. It supports the 6”x1” Serge PCB standards (same mounting holes, but slightly larger. It will fit into your panel projects and allow for simple power distribution, but with the addition of the Neutrik NC4MAV 4 pin panel mount male XLR (XLR4) jack. This is compatible with RS format 4×4 Boats that support the XLR4 on the side.
This is an XLR4 VERSION OF THE 4U format power distribution PCB but is compatible with RS, Serge, MOTM, CGS, MFOS, Frac, BugBrand, Slightly Nasty, or other format of modular that uses 0.156” MTA156 Molex OR 0.100 MTA100 Molex style headers. It supports the 6”x1” Serge PCB standards (same mounting holes, but slightly larger. It will fit into your panel projects and allow for simple power distribution, but with the addition of the Neutrik NC4MAV 4 pin panel mount male XLR (XLR4) jack. This is compatible with RS format 4×4 Boats that support the XLR4 on the side.
Bill of Materials:
4 pin XLR Male Jack - Neutrik NC4MAV
MTA100 / 0.100” Male - Adam Tech LHA-04-TRB
MTA156 / 0.156” Male - 640445-4
Neutrik NC4MAV Mechanical Drawing
4P connector pinout:
Pin 1 : -V
Pin 2: GND (Earth)
Pin 3: GND
Pin 4: +V
XLR4 connector pinout:
Pin 1: +V
Pin 2: GND (Earth)
Pin 3: GND
Pin 4: -V
*Be mindful of if your modules require +/-12V or +/-15V. This power distribution board can handle either, but not both at the same time.
Most modules can be adapted from +/12V to +/-15V with minimal resistor changes. You’ll have to check the build documentation for those modifications.
