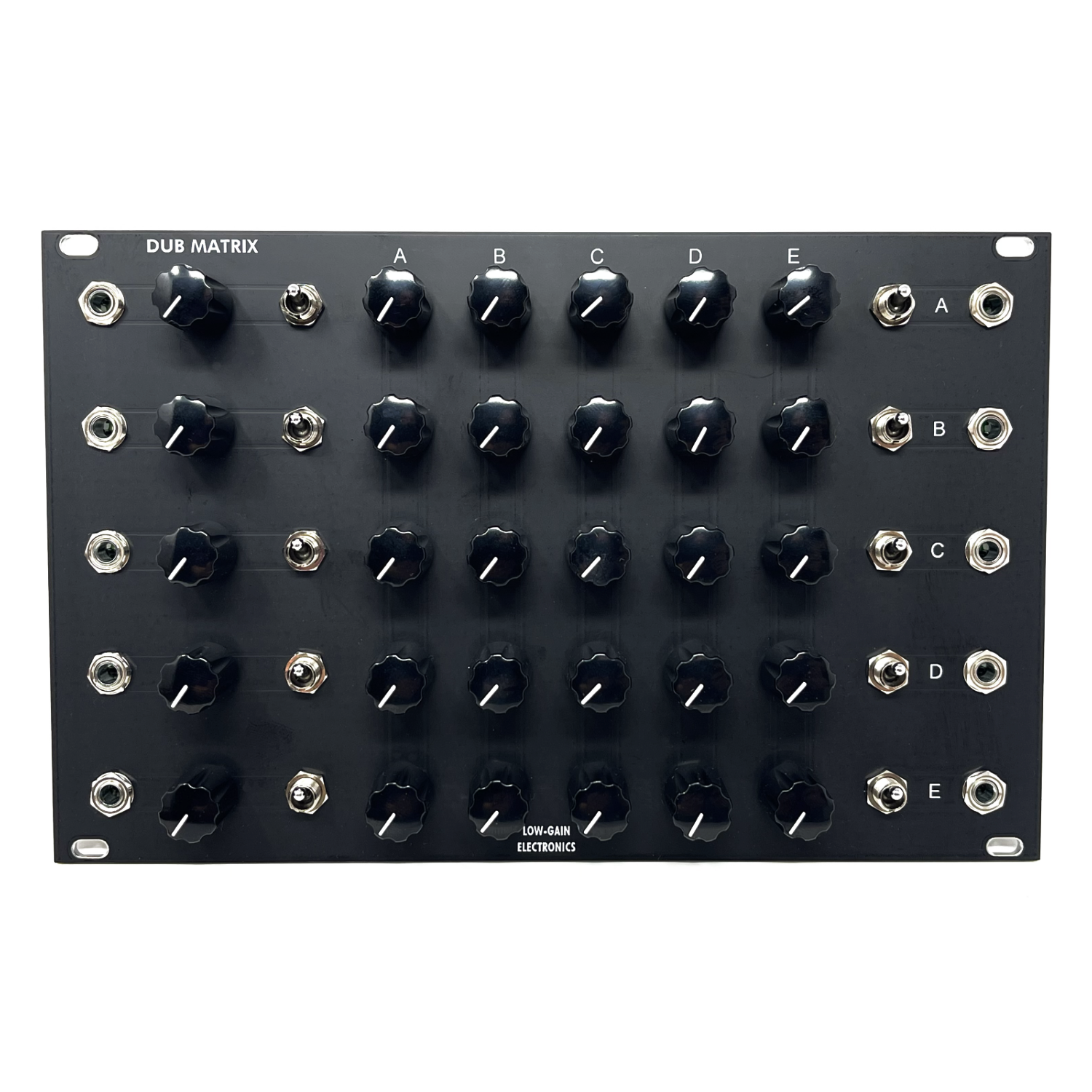

DubMatrix - 5 Channel Active Matrix Mixer
from $20.00
The DubMatrix is a 5 channel 40hp Active* Matrix Mixer! Production modules are now shipped with Matte Black panels.
DETAILS Current Draw: tbd Size: 40hp Depth: tbd Module / DIY:
Quantity:
The DubMatrix is a 5 channel 40hp Active* Matrix Mixer! Production modules are now shipped with Matte Black panels.
DETAILS Current Draw: tbd Size: 40hp Depth: tbd The DubMatrix is a 5 channel 40hp Active* Matrix Mixer! Production modules are now shipped with Matte Black panels.
DETAILS Current Draw: tbd Size: 40hp Depth: tbd The DubMatrix is a 5 channel 40hp Active* Matrix Mixer in Eurorack Format!
Features:
5 input channels with normalization expansion header
5 input attenuators
5 input cut switches (pre-summing matrix)
5 output cut switches (post-summing matrix)
5 output jacks with normaliziation expansion header
The DubMatrix is CV and audio friendly, keeping in mind you will have offset/clipping if you use both DC and AC signals at same time.
Inputs have a x2 gain structure so when the input attenuator is at 12(middle), it will function at Unity. Turn it all the way up and your signal is boosted by a gain of 2.
The expansion headers will allow for future modules to be added to the
DubMatrix to make stand alone desktop Matrix Mixer System (coming soon!)
*while this unit is active, it can be run passively by removing the active PCB
and jumping the headers on the rear of the PCB.
40HP, ?mA (tbd)
DIY PCB/Panels (Matte black) are available Exclusively soon from Modular Addict!
Build Guide & BOM: Bill of Materials
